Serving Vue.js or React

Since @sap/cds-dk 9.9.0

CAP is easily integrated with Vue.js or React. This guide explains how to set up a minimal project with a UI.

What about other UI frameworks?

Other popular UI libraries like Svelte could follow the same pattern but don't have cds add support for now.

Example project

The example here is built on a minimal CAP project:

cds init bookshop --add nodejs,tiny-sample && code bookshop

Now simply create a Vue.js or React app in app/catalog:

Vue.js

cds add vue --into catalog

React

cds add react --into catalog

Now simply start the dev server:

cds watch

Open http://localhost:4004 to see your running applications.

Next Up

You can deploy this project to Cloud Foundry or Kyma using the SAP BTP Application Frontend service or a custom App Router setup.

Simply add Application Frontend like so:

cds add app-frontend

When deploying your first Application Frontend service in that subaccount also make sure to subscribe to "Application Frontend Service" with plan "build-default".

Also make sure to choose an authentication mode:

cds add ias

or...

cds add xsuaa

For the deployment, we add HANA as the production database:

cds add hana

Afterwards, deploy your project:

cds up

Learn more about Cloud Foundry deploymentLearn more about Kyma deployment

When using IAS, set up the Application Frontend dependency.

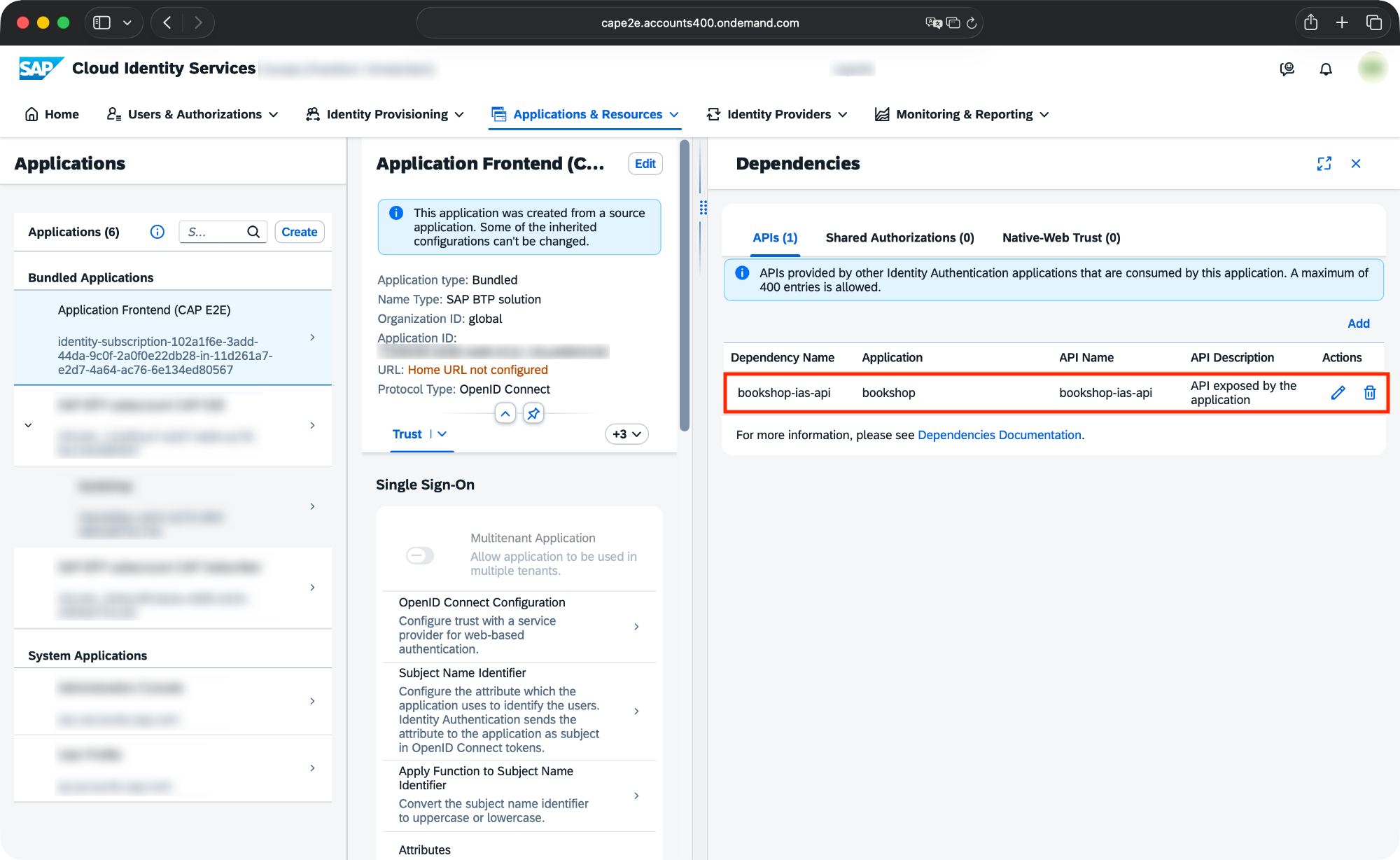

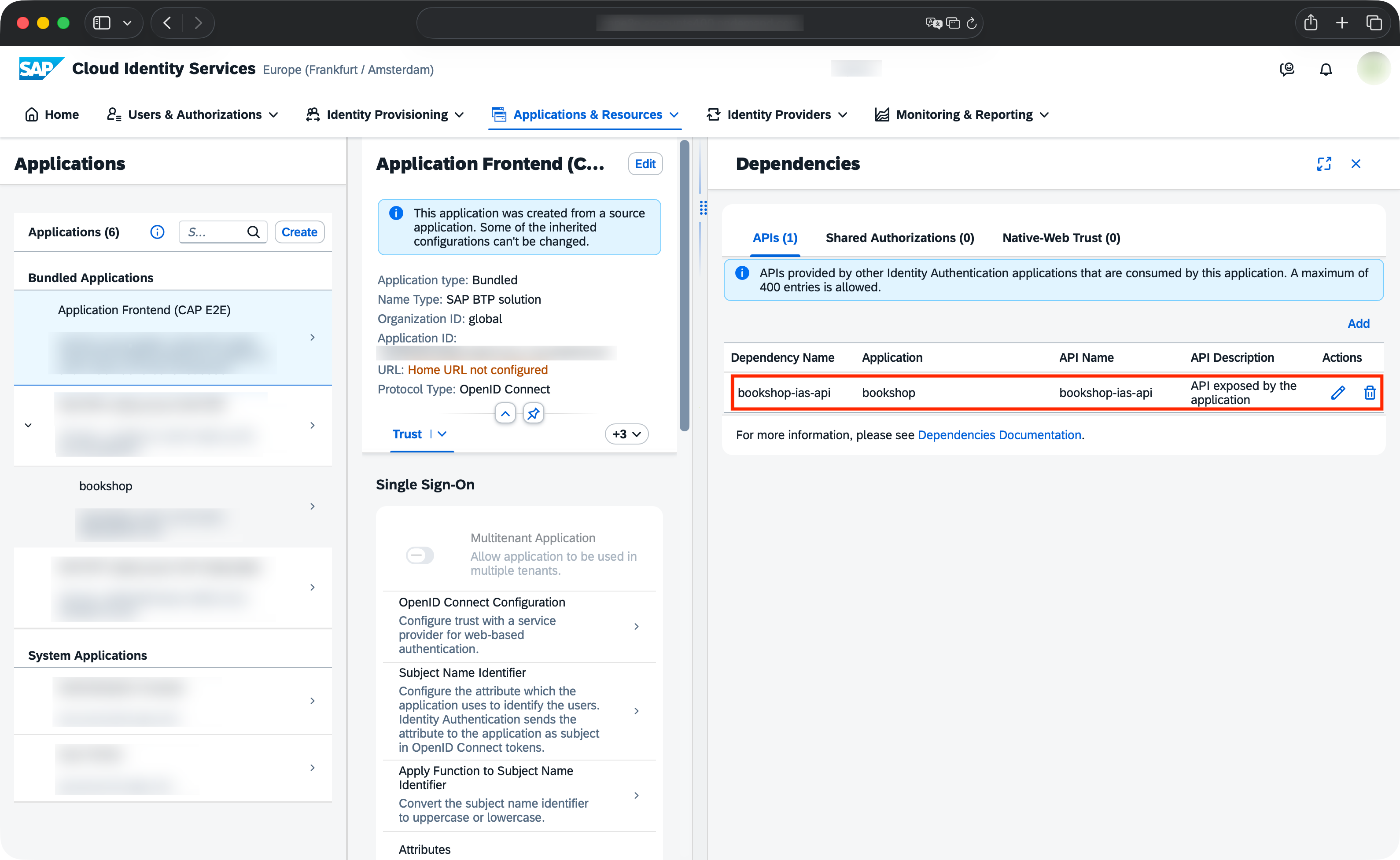

Add the API exposed by your bookshop application to the Application Frontend Service in your IAS admin console:

You can use the @sap/appfront-cli package to see the links of your deployed application:

acftl list
